6DD... (SIMADYN D)

Siemens SIMADYN D + SIMATIC TDC
6DD1... (SIMADYN D)

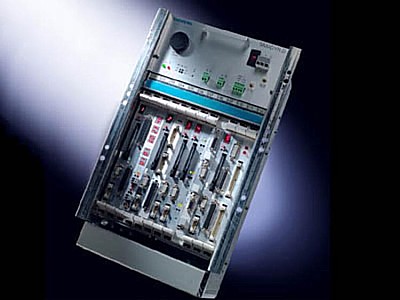

SIMADYN D is the system used to implement highly dynamic technology and drive control systems. This modular, CFC-freely configurable, modular control system in multi-processor technology processes all control, computation, control and communication tasks of continuously changing data at maximum speed.

SIMADYN D is configured with the windows-based graphical SIMATIC tools STEP 7, CFC (Continuous Function Chart) and SFC (Sequential Function Chart). The SIMATIC software packages are supplemented by software package D7-SYS, which contains the function blocks for SIMADYN D and the very fast operating system.

Manuals / Documentation:

SIMADYN D Hardware_2011-04_deutsch.pdf
SIMADYN D Syst-und-Kom-Projektierung_2003-12_de.pdf
SIMATIC D7-SYS Glossar_de.pdf

6DD1... (SIMATIC TDC)

SIMATIC TDC is the system with which highly dynamic technology and drive control can be implemented. This modular, CFC-freely configurable, modular control system in multi-processor technology processes all control, computation, control and communication tasks of continuously changing data at maximum speed.

Manuals / Documentation:

SIMATIC TDC Hardware_2012-13_deutsch.pdf
SIMATIC TDC System-und-Komm-Projektierung_2009-07_de.pdf
SIMATIC D7-SYS Glossar_de.pdf
